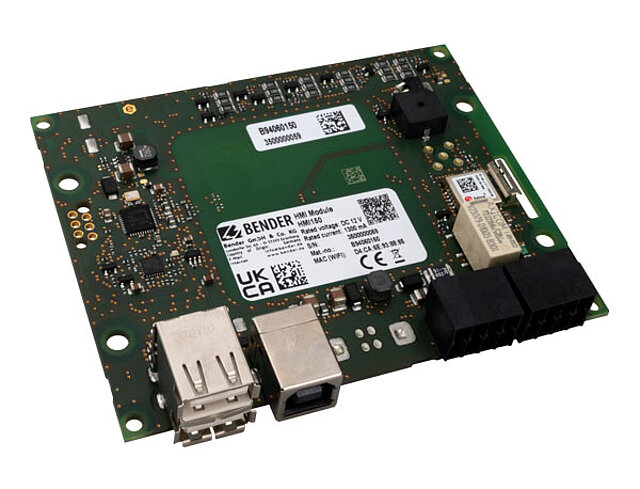

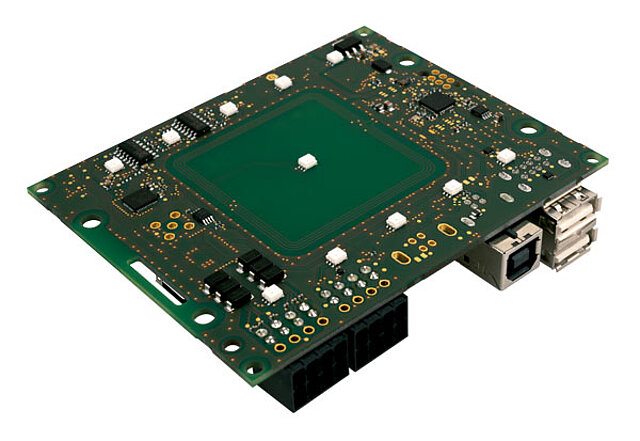

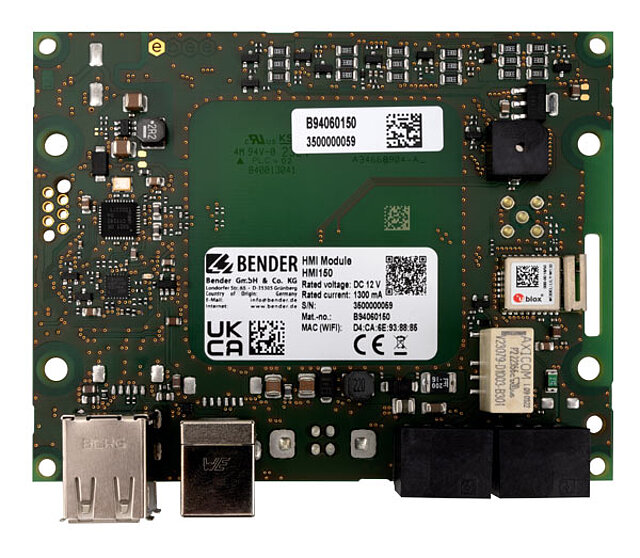

HMI140 / HMI145 / HMI150
HMI140 / HMI145 / HMI150 Variante(n)
| Typ | RFID- Lesegerät | RGB-LEDs | Digitaler Steuer-Eingang | USB-Host- Anschluss | WiFi | Ausgang RGB-LED | Ausgang Relais | Sensoren (Licht, Temperatur) | Summer | Art.-Nr. |
|---|---|---|---|---|---|---|---|---|---|---|
| HMI150 | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | B94060150 |
| HMI145 | ✓ | ✓ | ✓ | ✓ | – | ✓ | ✓ | – | ✓ | B94060151 |
| HMI140 | ✓ | ✓ | ✓ | – | – | – | ✓ | – | – | B94060152 |
Downloads für HMI140 / HMI145 / HMI150
| Typ | Sprache | Name | Größe | Zeitstempel | D-/B-Nummer |
|---|---|---|---|---|---|
| Flyer | HMI1xx - Interface module for Bender charge controller | 268.3 KB | 2025/08/01 09:04:2201.08.2025 09:04:22 | ||
| Technische Informationen | Länderliste Funkzulassungen/Countries with RF Approval | 55.3 KB | 2025/04/11 10:03:0911.04.2025 10:03:09 | ||
| CE-Konformitätserklärungen | HMIxxx | 69.6 KB | 2023/10/11 05:44:0011.10.2023 05:44:00 | ||
| Konformitätserklärungen | UKCA - HMIxxx | 121.4 KB | 2023/10/11 06:19:0511.10.2023 06:19:05 | ||
| Handbücher | DE | HMI140/HMI145/HMI150 | 824.4 KB | 2025/03/17 10:16:3217.03.2025 10:16:32 | D00481 |
| Handbücher | EN | HMI140/HMI145/HMI150 | 862.6 KB | 2025/03/17 10:24:5417.03.2025 10:24:54 | D00481 |
| Datenblätter | DE | HMI140/HMI145/HMI150 | 4.4 MB | 2025/03/17 12:29:4117.03.2025 12:29:41 | D00481 |
| Datenblätter | EN | HMI140/HMI145/HMI150 | 4.4 MB | 2025/03/17 12:30:2117.03.2025 12:30:21 | D00481 |
| Kurzanleitungen | DE | HMI140/HMI145/HMI150 | 476.7 KB | 2025/03/17 10:15:2617.03.2025 10:15:26 | D00481 |
| Kurzanleitungen | EN | HMI140/HMI145/HMI150 | 476.7 KB | 2025/03/17 10:15:2617.03.2025 10:15:26 | D00481 |
| Flyer | We are your eMobility partner! | 262.3 KB | 2023/11/29 10:01:3629.11.2023 10:01:36 |
