AN110

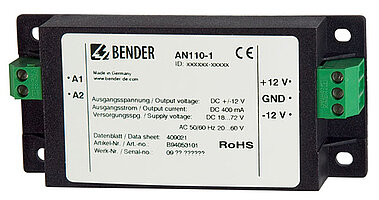

The power supply unit AN110 is used to supply W…AB series measuring current transformers. The CTs are to be supplied with a symmetrical supply voltage of DC ± 12 V using a prefabricated WXS… series connecting cable.
The power supply unit is capable of supplying up to six W…AB series measuring current transformers.
The power supply unit AN110 is used to supply W…AB series measuring current transformers. The CTs are to be supplied with a symmetrical supply voltage of DC ± 12 V using a prefabricated WXS… series connecting cable.
The power supply unit is capable of supplying up to six W…AB series measuring current transformers.
Features
- Power supply for measuring current transformers W...AB series
AN110 Variant(s)
| Type | Supply voltage US* | Output voltage | Art. No. |
|---|---|---|---|
| AN110-1 | AC 20…60 V/DC 18…72 V | ± 12 V | B94053101 |
| AN110-2 | AC 90…264 V/DC 100…353 V | ± 12 V | B94053102 |
* Absolute values
Optional Accessories for AN110
Connecting cables for W…AB measuring current transformers
| Type | Length | Art. No. |
|---|---|---|
| WXS-100 | 1 m | B98080506 |
| WXS-250 | 2,5 m | B98080507 |
| WXS-500 | 5 m | B98080508 |
| WXS-1000 | 10 m | B98080509 |
