MR-F-DI4

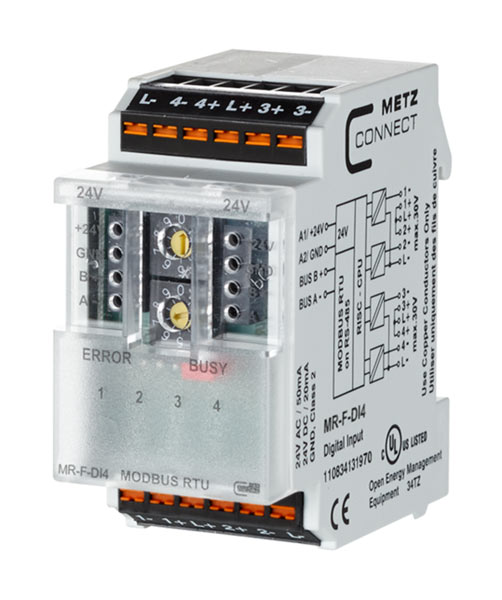

The MR-F-DI4 is a Modbus RTU module that is suitable for decentralised switching tasks in building and automation technology. It has four digital inputs that can be used to detect potential-free switching states, such as limit switches or auxiliary contacts. The inputs can be operated as both contact and voltage inputs. The inputs are requested via standard registers using a Modbus master (e.g. a COMTRAXX device). Addressing and setting the bit rate and parity can be carried out using front switches.
The MR-F-DI4 is a Modbus RTU module that is suitable for decentralised switching tasks in building and automation technology. It has four digital inputs that can be used to detect potential-free switching states, such as limit switches or auxiliary contacts. The inputs can be operated as both contact and voltage inputs. The inputs are requested via standard registers using a Modbus master (e.g. a COMTRAXX device). Addressing and setting the bit rate and parity can be carried out using front switches.
Features
- Expansion of Bender devices by 4 digital inputs
- Easy integration into COMTRAXX systems
Suitable for decentralised installations
- Components can be expanded using the daisy chain principle
- Per input – switchable between contact and voltage input
- Modbus RTU communication
Applications
- Status monitoring of doors, auxiliary contacts, etc.
- Detection of digital signals
MR-F-DI4 Variant(s)
| Type | Art. No. |
|---|---|
| MR-F-DI4 | BF25510020 |
Downloads for MR-F-DI4
| Name | Category | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| MR-F-DI4 | Datasheets | 5.1 MB | DE | 2025/08/1414.08.2025 | |
| MR-F-DI4 | Datasheets | 5.1 MB | EN | 2025/11/1818.11.2025 | |
| MR-F-DI4 | Datasheets | 5.1 MB | FR | 2025/11/1818.11.2025 | |
| MR-F-DI4 | Declarations of Conformity | 169.7 KB | 2025/08/1414.08.2025 | ||
| MR-F-DI4 - Montagehinweis/Mounting note/Notice d'installation | Technical information | 3.4 MB | 2025/08/1414.08.2025 |
