LINETRAXX® SmartDetect RCMS410, RCMS425-L, RCMS425-D

  • 4 channels in one compact housing
  • AC, pulsed DC, or AC/DC sensitive measuring for each channel
  • Frequency analysis up to the 400th harmonic
  • Configurable frequency response
  • Communication via various interfaces

The LINETRAXX® SmartDetect RCMS410/RCMS425-L/RCMS425-D is an AC, pulsed DC, and smooth DC sensitive residual-current monitor for earthed power-supply systems. It measures residual currents between 2 mA and 70 A with direct voltage as well as alternating voltage in a frequency range from 15 Hz to 20 kHz.

Corresponding measuring-current transformers (e. g. CTUB100 and CTAC series) must be connected to the residual current inputs.

Individual response values for pre-warning and main alarm can be set for each channel, and the response value can be chosen from the RMS value of AC and DC or the individual AC and DC components.

The alarm is indicated by alarm LEDs (RCMS410 and RCMS425-L) or on an LCD display (RCMS425-D). Alarm signalling is also possible via the digital outputs and via the Modbus RTU interface.

Despite its small size and compact design, the RCMS410 is a top performer. It can be operated with a DC 24 V power supply.

All devices have variety digital inputs and outputs, as well as an analogue output.

The communication with higher-level systems . The parameters required for electrical systems can be set either via Modbus RTU or via the NFC interface and the Bender Connect App. It is also possible to preset the operating parameters ex works.

Various functions can be added to the devices using function modules.

Questions? Contact us!

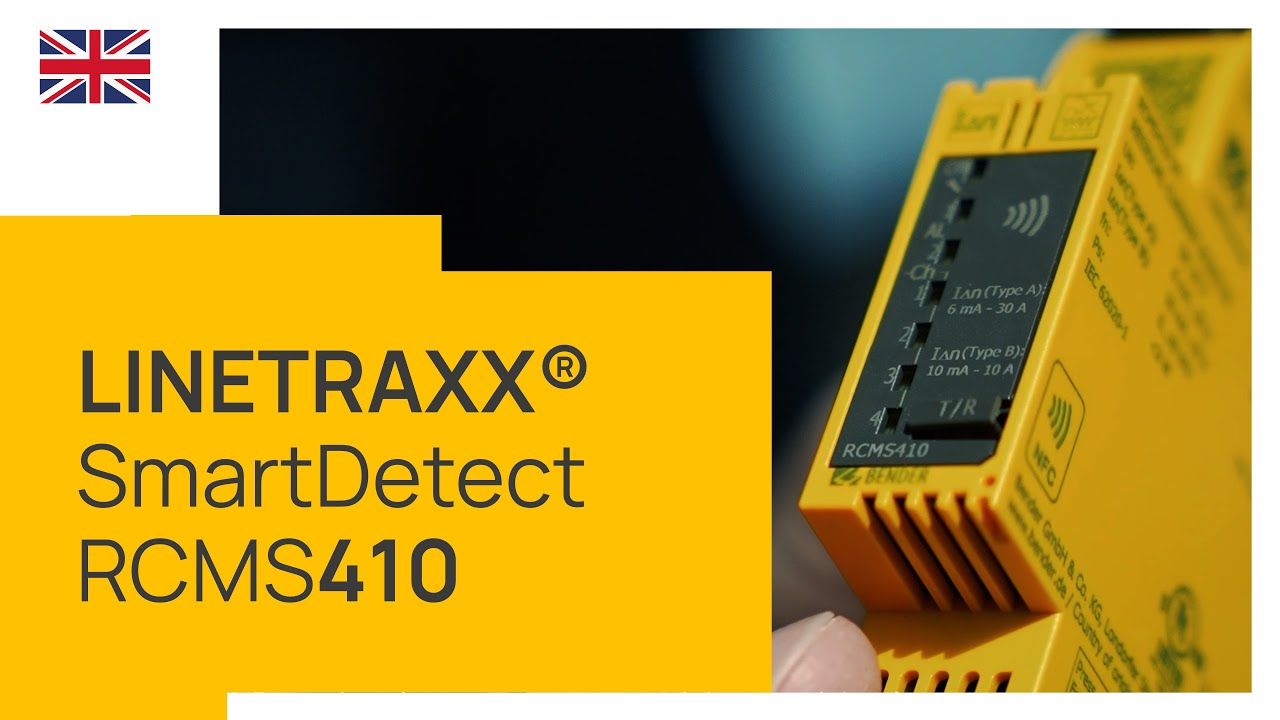

SmartDetect RCMS

We need your consent to load the YouTube Video service!

We use a third party service to embed video content that may collect data about your activity. Please review the details and accept the service to watch this video.

powered by Usercentrics Consent Management Platform
RCMS410
RCMS410
RCMS410
RCMS410
RCMS410
RCMS425-D
RCMS425-L
SmartDetect RCMS
RCMS410
RCMS410
RCMS410
RCMS410
RCMS410
RCMS410
RCMS425-D
RCMS425-L
  • 4 channels in one compact housing
  • AC, pulsed DC, or AC/DC sensitive measuring for each channel
  • Frequency analysis up to the 400th harmonic
  • Configurable frequency response
  • Communication via various interfaces

The LINETRAXX® SmartDetect RCMS410/RCMS425-L/RCMS425-D is an AC, pulsed DC, and smooth DC sensitive residual-current monitor for earthed power-supply systems. It measures residual currents between 2 mA and 70 A with direct voltage as well as alternating voltage in a frequency range from 15 Hz to 20 kHz.

Corresponding measuring-current transformers (e. g. CTUB100 and CTAC series) must be connected to the residual current inputs.

Individual response values for pre-warning and main alarm can be set for each channel, and the response value can be chosen from the RMS value of AC and DC or the individual AC and DC components.

The alarm is indicated by alarm LEDs (RCMS410 and RCMS425-L) or on an LCD display (RCMS425-D). Alarm signalling is also possible via the digital outputs and via the Modbus RTU interface.

Despite its small size and compact design, the RCMS410 is a top performer. It can be operated with a DC 24 V power supply.

All devices have variety digital inputs and outputs, as well as an analogue output.

The communication with higher-level systems . The parameters required for electrical systems can be set either via Modbus RTU or via the NFC interface and the Bender Connect App. It is also possible to preset the operating parameters ex works.

Various functions can be added to the devices using function modules.

Questions? Contact us!

We need your consent to load the YouTube Video service!

We use a third party service to embed video content that may collect data about your activity. Please review the details and accept the service to watch this video.

powered by Usercentrics Consent Management Platform

Features

Special features

  • Four channels for AC, pulsed DC, or AC/DC sensitive measuring
  • Configurable frequency response
  • Expansion/retrofit or change of functions in the event of changed monitoring requirements
  • Simple configuration with Bender Connect App via NFC interface
  • Customer-specific factory settings possible

Residual current measurement

  • Residual current measurement device (RCM) in accordance with DIN EN 62020-1 (IEC 62020-1)
  • Four channels for residual current measurement
  • Every channel can alternatively also be configured as digital input
  • Either AC, pulsed DC, or AC/DC sensitive measuring for every channel 
  • Type A, type F, type B and type B+ characteristics can be set in accordance with IEC 60755 (or VDE 0664-400)
  • Measurement of AC/DC (r.m.s. value) and AC and DC components
  • Frequency range: DC, 15 Hz…20 kHz
  • Frequency analysis up to the 400th harmonic, calculation of the THD value

Response value monitoring

  • Main alarm with adjustable residual response value IΔn
  • Prewarning: 10…100 % of the residual response value IΔn
  • Separate evaluation of AC/DC (RMS) or AC and DC components
  • Response value:
    - Type A: 6 mA…30 A
    - Type F: 6 mA…30 A (15 Hz…20 kHz)
    - Type B/Type B+: 10 mA…10 A (only with function module B “AC/DC sensitive measuring and evaluation of values“)
  • Configurable frequency response
  • Measurement modes for each channel: overcurrent (standard), undercurrent, or window mode (out-of-range-values).
  • Adjustable time delays (response delay and delay on release)
  • Fault-memory behaviour per channel selectable
  • Preset function
  • Reload function
  • Starts in alarm status and start-up delay configurable
  • Continuous CT-connection monitoring ​​​​

Display and operation

  • NFC interface for parameter setting with the Bender Connect App
  • LED bargraph with (RCMS410 and RCMS425-L)
    - Device status LED
    - LEDs for pre-warning and main alarm
    - Alarm-LED for each channel
  • LCD display (RCMS425-D)
    - Device status LED
    - Alarm LED
    - Full text menu
    - 4-button navigation
  • Integrated combined test/reset button, connection for external buttons

Interfaces

  • One digital input, one digital input/output, and one multifunctional digital/analogue output
  • RS-485 with Modbus
  • NFC interface for device parameter setting via Bender Connect App with the device engerised or de-energised

Supply voltage

  • Supply voltage 24 V DC
  • Wide range power supply AC/DC 100…240 V (RCMS425-L and RCMS425-D)

Applications

  • Measuring and analysing residual currents, fault currents, and nominal currents of loads and installations
  • Monitoring of residual currents of stationary electrical installations and equipment as an alternative to the periodic verification
  • Recognition of gradual insulation deteriorations to support preventive maintenance
  • Monitoring of currents constituting a fire hazard at locations exposed to fire hazards
  • EMC monitoring of TN-S systems for stray currents and additional N-PE-bridges
  • Monitoring of PE and protective-bonding conductors for the absence of a current flow
  • Monitoring of N-conductors for overload due to harmonics
  • Monitoring of digital input

LINETRAXX® SmartDetect RCMS410, RCMS425-L, RCMS425-D Variant(s)

First select the type and then the device variant (item no.) using the function modules.

Type selection

TypeDisplayIOs; relays (change over contact)Supply voltage Housing
RCMS410LED bargraphM+, Q, IDC 24 V1 TE
RCMS425-LLED bargraphM+, Q, I; K1, K2DC 24 V; AC/DC 100...240 V2 TE
RCMS425-DLCD displayM+, Q, I; K1, K2DC 24 V; AC/DC 100...240 V2 TE

Functional Module Selection

The function modules can be purchased ex works or subsequently as an unlimited licence. Subsequent activation of individual or multiple function modules is possible for all variants (item no.).

All variants can be used with type A/F measuring current transformer series.
The B function module is required to use type B/B+ measuring current transformer series for AC/DC sensitive measurement.

Function modules:

  • A: Harmonic analysis (FFT)
  • B: AC/DC sensitive measuring and evaluation of values
  • C: Connection of type A external current transformers
TypeCustomer-specific factory settings Enabled function modulesArt. No.
RCMS410Possible*Customer-specific*B84604040
NoBB84604041
NoA, B, CB84604042
RCMS425-LPossible*Customer-specific*available soon
NoB
NoA, B, C
RCMS425-DPossible*Customer-specific*
NoB
NoA, B, C

* As part of the ordering process, customer-specific factory settings can be defined together with our sales department for some parameters (e.g. response values and interface settings) with which the units are delivered. The reference to a customer-specific configured variant can then be found on the packaging of the individual product as well as in the delivery note (the changed parameters are listed there, the assignment is made via the item number in the delivery note and the serial number of the unit).

Optional Accessories for LINETRAXX® SmartDetect RCMS410, RCMS425-L, RCMS425-D

Power supply units

Typemax. connected current transformersArt. No.
STEP-PS/1 AC/24 DC/0.54B94053110
STEP-PS/1 AC/24 DC/1.7514B94053111
STEP-PS/1 AC/24 DC/4.234B94053112


Measuring current transformers

Type
CTUB100 series
CTBS25
CTAC series
W…-S… series
WR…S(P)series
WS series
WS…S series
