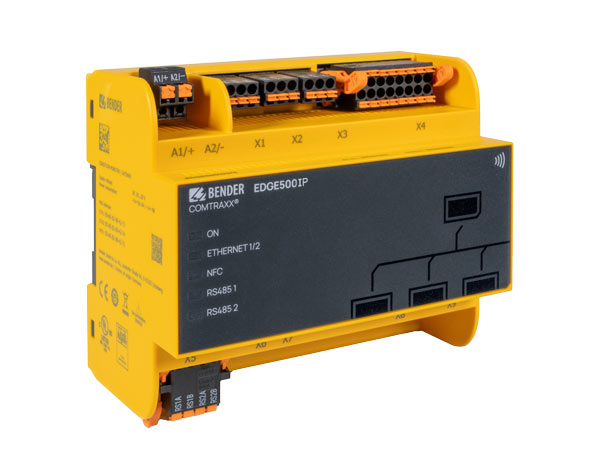

COMTRAXX® EDGE500IP
- Integrated gateway for all common industrial protocols
- Intuitive HTML5 web interface - barrier-free & future-proof
- Integration of Bender and third-party devices via various interfaces
- Two isolated Ethernet ports to separate the company network from the sensor network
- Remote access, remote diagnostics and easy parameter setting
- Integrated data logger for analysing errors and system statuses
- Customer-specific visualisation
The COMTRAXX® EDGE500IP is a powerful condition monitor with integrated gateway for centralised monitoring and communication in electrical installations. It connects Bender systems and third-party devices with modern IT and automation networks - safely, flexibly and future-proof. The web-based user interface enables easy parameter setting, putting into service and visualisation - without any additional software.
- Integrated gateway for all common industrial protocols
- Intuitive HTML5 web interface - barrier-free & future-proof
- Integration of Bender and third-party devices via various interfaces
- Two isolated Ethernet ports to separate the company network from the sensor network
- Remote access, remote diagnostics and easy parameter setting
- Integrated data logger for analysing errors and system statuses
- Customer-specific visualisation
The COMTRAXX® EDGE500IP is a powerful condition monitor with integrated gateway for centralised monitoring and communication in electrical installations. It connects Bender systems and third-party devices with modern IT and automation networks - safely, flexibly and future-proof. The web-based user interface enables easy parameter setting, putting into service and visualisation - without any additional software.
Features
- Condition monitoring for Bender systems
- Integrated gateway for Modbus TCP/RTU, SNMP, MQTT
- Two physically isolated Ethernet interfaces
- HTML5-based web interface
- Integration of devices via BMS, BCOM, Modbus RTU/TCP
- Digital inputs and outputs for message recording
- Storage, documentation and recovery of parameters
- Safe remote maintenance via LAN, WAN or Internet
- 30 integrated data loggers for continuous recording of system statuses and errors
Applications
- Visualisation and analysis of device and system statuses
- Monitoring of Bender and third-party devices
- Customised system overviews in the web browser
- Alarm management with targeted user notification
- Integration into control systems such as building technology
- Putting into service, diagnosis and remote maintenance of systems
COMTRAXX® EDGE500IP Variant(s)
| Type | Supply voltage US | Power consumption | Application | Art. No. |
|---|---|---|---|---|
| EDGE500IP | DC 24 V | ≤ 3,5 W |
| B95061250 |
Funktionsmodul (Software-Lizenz)
| Package | Application | Art.-Nr. |
|---|---|---|
| Function module A | Interfaces | B75061030 |
| Function module B | Engineering System overview Parameterisation Backups Documentation Customised texts E-mail notification Device failure monitoring History memory Data logger Virtual devices | B75061031 |
| Function module C | Live View Visualisation / Editor Alarm addresses / test addresses Customised system overview | B75061032 |
Optional Accessories for COMTRAXX® EDGE500IP
| Type | Art. No. |
|---|---|
| Plug-Kit A1/A2, RS-485 | B95061920 |
| Plug-Kit Relais, DI | B95061921 |
| Power supply unit STEP-PS/1 AC/24 DC/0.5 | B94053110 |
| Power supply unit STEP-PS/1 AC/24 DC/1.75 | B94053111 |
| Power supply unit STEP-PS/1 AC/24 DC/4.2 | B94053112 |
Downloads for COMTRAXX® EDGE500IP
| Name | Category | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| EDGE500IP Update V5.0.1-731 | Software | 346.5 MB | 2025/08/0505.08.2025 | D0850 | |
| EDGE500IP | Datasheets | 7.1 MB | DE | 2025/07/0404.07.2025 | D0850 |
| EDGE500IP | Datasheets | 7.1 MB | EN | 2025/07/0404.07.2025 | D0850 |
| EDGE500IP | Manuals | 10.8 MB | DE | 2025/07/0303.07.2025 | D0850 |
| EDGE500IP | Manuals | 10.7 MB | EN | 2025/07/0303.07.2025 | D0850 |
| EDGE500IP | Quickstarts | 1.4 MB | DE | 2025/07/0303.07.2025 | D0850 |
| EDGE500IP | Quickstarts | 1.4 MB | EN | 2025/07/0303.07.2025 | D0850 |
| EDGE500 | CE Declarations of conformity | 250.2 KB | 2025/07/3131.07.2025 | ||
| UKCA - EDGE500 | Declarations of Conformity | 167.4 KB | 2025/07/3131.07.2025 | ||
| EDGE500IP | Tender texts | 34.1 KB | DE | 2025/07/3131.07.2025 | |
| EDGE500IP | Tender texts | 33.1 KB | EN | 2025/07/3131.07.2025 |
