Drilling rigs and floating production plants

Oil rigs and floating production systems

Far from land but nonetheless safe

[] Bohrplattform

An oil rig has working production systems which normally produce around the clock and should not be shut down due to minor electrical faults. The use of unearthed systems (IT systems) with appropriate monitoring devices from Bender ISOMETER® can guarantee this. Personal protection must also be ensured in the accommodation and supply units. This involves, for example, monitoring with RCMS residual current systems which allow the fastest possible warning and shutdown. All system data can be transferred to a central control point.

Product overview ISOMETER®
Product overview Residual current monitoring
Application Note EDS309x
Technical paper Insulation fault location - Planning and set up in the solar charging station at the University of Applied Sciences Bingen
Technical paper Electrical safety in control and auxiliary circuits

Recommended systems for insulation monitoring:

Recommended systems for residual current monitoring:

Recommended systems for insulation fault location:

EN 61557-8
Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 8: Insulation monitoring devices for IT systems

EN 61557-9

Electrical safety in low voltage distribution systems up to 1000 V a.c. and 1500 V d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 9: Equipment for insulation fault location in IT systems

EN 61557-15

Electrical safety in low voltage distribution systems up to 1000 V ac and 1500 V dc - Equipment for testing, measuring or monitoring of protective measures - Part 15: Functional safety requirements for insulation monitoring devices in IT systems and equipment for insulation fault location in IT systems

IEC 61892-1

Mobile and fixed offshore units - Electrical installations - Part 1: General requirements and conditions

IEC 61892-2

Mobile and fixed offshore units - Electrical installations - Part 2: System design

IEC 61892-7

Mobile and fixed offshore units - Electrical installations - Part 7: Hazardous areas

Drilling ships

Secure extraction, storage and shipping

Drilling ships Secure extraction

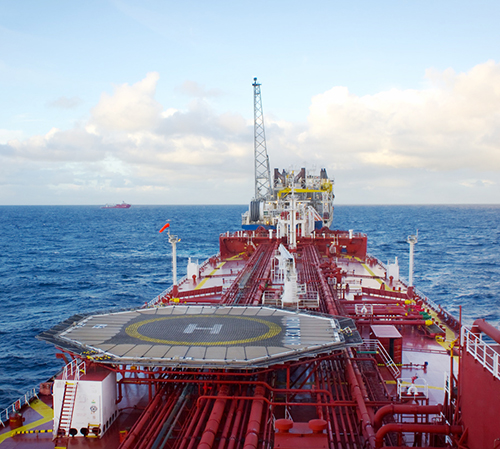

A Floating Production Storage and Offloading Unit (FPSO) is a ship used for extraction, storage and offloading of petroleum and natural gas. In offshore operations, FPSOs are used because they obviate the need of constructing a complicated, expensive pipeline infrastructure to the extraction site. Bender kits out these ships with the appropriate ISOMETER® technology to ensure maximum safety.

Product overview ISOMETER®
Technical paper Insulation fault location - Planning and set up in the solar charging station at the University of Applied Sciences Bingen
Technical paper Electrical safety in control and auxiliary circuits

Recommended systems for insulation fault location:

Recommended Systems for insulation monitoring:

EN 61557-8
Electrical safety in low voltage distribution systems up to 1 000 v a.c. and 1 500 v d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 8: Insulation monitoring devices for IT systems

EN 61557-9

Electrical safety in low voltage distribution systems up to 1000 V a.c. and 1500 V d.c. - Equipment for testing, measuring or monitoring of protective measures - Part 9: Equipment for insulation fault location in IT systems

EN 61557-15

Electrical safety in low voltage distribution systems up to 1000 V ac and 1500 V dc - Equipment for testing, measuring or monitoring of protective measures - Part 15: Functional safety requirements for insulation monitoring devices in IT systems and equipment for insulation fault location in IT systems

IEC 61892-1

Mobile and fixed offshore units - Electrical installations - Part 1: General requirements and conditions

IEC 61892-2

Mobile and fixed offshore units - Electrical installations - Part 2: System design

IEC 61892-7

Mobile and fixed offshore units - Electrical installations - Part 7: Hazardous areas

IEC 61892-5

Mobile and fixed offshore units - Electrical installations - Part 5: Mobile units

Underwater systems

A safe power supply, even underwater

Underwater systems

Underwater systems are mainly used to lay pipelines and install underwater structures. These include what are known as ROV (Remotely Operated Vehicles) which are cable-operated under water. Bender ISOMETER®s monitor the cable connection and the underwater electronics for faults. An EDS system guarantees rapid troubleshooting.
