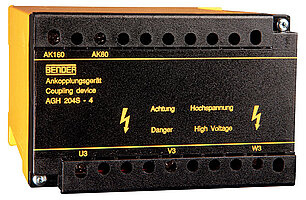

AGH204S-4
- Increase of the ISOMETER® nominal voltage range
- Used with ISOMETER® of the iso685 series
- For AC up to 1650 V
In conjunction with an ISOMETER®, the AGH204S-4 coupling device is used for monitoring the insulation of 3AC IT systems (unearthed systems). It is designed to extend the nominal voltage range of the ISOMETER® series shown in the wiring diagram at terminal AK160 up to 3(N)AC 0…1650 V. At terminal AK80, it extends the range up to 3(N)AC 0…1300 V.
- Increase of the ISOMETER® nominal voltage range
- Used with ISOMETER® of the iso685 series
- For AC up to 1650 V
In conjunction with an ISOMETER®, the AGH204S-4 coupling device is used for monitoring the insulation of 3AC IT systems (unearthed systems). It is designed to extend the nominal voltage range of the ISOMETER® series shown in the wiring diagram at terminal AK160 up to 3(N)AC 0…1650 V. At terminal AK80, it extends the range up to 3(N)AC 0…1300 V.
AGH204S-4 Variant(s)
| Type | Nominal system voltage Un | Art. No. |
|---|---|---|
| AGH204S-4 | 3(N)AC 0…1650 V | B914013 |
Downloads for AGH204S-4
| Name | Category | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| AGH204S-4 | Manuals | 988.5 KB | DE | 2026/04/1313.04.2026 | D00094 |
| AGH204S-4 | Manuals | 988.5 KB | EN | 2026/04/1313.04.2026 | D00094 |
| AGH204S-4 | Datasheets | 3.0 MB | DE | 2026/04/1313.04.2026 | D00094 |
| AGH204S-4 | Datasheets | 3.0 MB | EN | 2026/04/1313.04.2026 | D00094 |
| AGH204S-4 | Datasheets | 3.0 MB | ES | 2026/04/1313.04.2026 | D00094 |
| AGH204S-4 | Datasheets | 194.2 KB | ZH | 2019/05/1313.05.2019 | D00094 |
