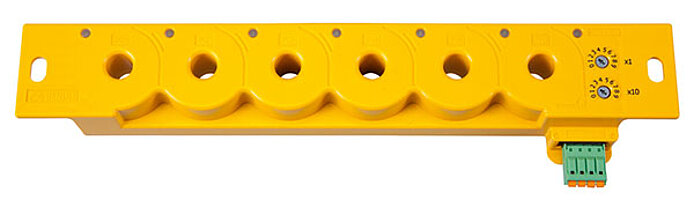

The six-channel RCMS150… residual current monitors are intended for measuring AC and DC fault currents in earthed power supplies which can be caused by insulation faults on loads. The devices are able to measure residual currents up to IΔ = 500 mA in a frequency range of DC…2 kHz. They are suitable for applications with a load current of up to 32 A and are thus intended in particular for monitoring final circuits. Two separately adjustable response values allow a distinction to be made between prewarning and alarm.
The devices feature an RS-485 interface with either BMS protocol or Modbus RTU which can be used to transfer measured values and alarm values. Setting parameters is also possible via this interface.
In order to meet the requirements of applicable standards, customised parameter settings must be made on the equipment in order to adapt it to local equipment and operating conditions. Please heed the limits of the range of application indicated in the technical data.
|Datasheets||RCMS150||507.7 KB||ES||13.05.2019 10:31:37||D00259|
|Manuals||RCMS150||1.7 MB||DE||10.08.2022 11:48:32||D00259|
|Manuals||RCMS150||1.7 MB||EN||10.08.2022 11:48:51||D00259|
|Datasheets||RCMS150||617.0 KB||DE||09.08.2022 05:37:37||D00259|
|Datasheets||RCMS150||612.4 KB||EN||09.08.2022 05:37:47||D00259|
|Quickstarts||RCMS150||973.5 KB||DE||10.08.2022 11:48:03||D00259|
|Quickstarts||RCMS150||973.5 KB||EN||10.08.2022 11:48:03||D00259|
|Mounting clip for DIN rail mounting||✓||✓||B91080110|
|Condition Monitor with integrated gateway||✓||✓||COM465IP|
CP907-I (flush-mounted enclosure)
CP907-I (control cabinet door mounting)
|Residual current monitoring system*||✓||-||RCMS460-D-1|
* In this case, no condition monitor/gateway is necessary
Suitable for measured value and alarm indication only, not suitable for parameter setting
|Type||Nominal supply voltage Us||Protocol||Art. No.|
|RCMS150||DC 24 V||BMS||B94053025|
|RCMS150-01||DC 24 V||Modbus RTU||B94053026|
