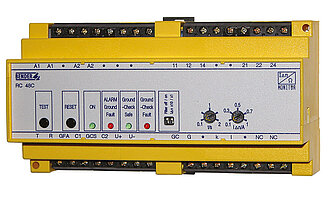

RC48C
The RC48C ground-fault ground-c ontinuity monitor is used to monitor the residual current in high-resistance grounded instal- lations. The maximum ground faul t current in these installations is limited by a neutral grounding resistor to 5 A, 15 A or 25 A.
It is particularly suitable for trailing cable protection. Trailing cables are very susceptible to environmental damage and therefore they need special attention. This is where BENDER comes in.
The RC48C ground-fault ground -continuity monitor combines two functions in one device:
- Monitoring of the residual current and
- Monitoring the grounding conductor for low resistance, high resistance and shorted.
If a limiting value is exceeded, a relay with two voltage free chan- geover contacts will be activated. Alarm messages of the RC48C ground-fault ground-c ontinuity monitor can also be displayed on a remote RI2000GC alarm indicator and operator panel.
The RC48C ground-fault ground-c ontinuity monitor is used to monitor the residual current in high-resistance grounded instal- lations. The maximum ground faul t current in these installations is limited by a neutral grounding resistor to 5 A, 15 A or 25 A.
It is particularly suitable for trailing cable protection. Trailing cables are very susceptible to environmental damage and therefore they need special attention. This is where BENDER comes in.
The RC48C ground-fault ground -continuity monitor combines two functions in one device:
- Monitoring of the residual current and
- Monitoring the grounding conductor for low resistance, high resistance and shorted.
If a limiting value is exceeded, a relay with two voltage free chan- geover contacts will be activated. Alarm messages of the RC48C ground-fault ground-c ontinuity monitor can also be displayed on a remote RI2000GC alarm indicator and operator panel.
Features
- Earth fault monitor with integrated loop monitoring
- Measurement of the fault current by means of a Bender measuring current transformer
- Alarm easily recognisable by LED lights
- Alarm relay with two voltage-free changeover contacts
- Alarm contact can be delayed by a selectable time
- Detection of series and transverse resistance faults
- The alarm relay can be used to trigger a load switch
- Depending on the type of load switch, the operating mode of the alarm relay can be set to normally open or normally closed operation
Applications
- Monitoring cables that feature a pilot wire
- Monitoring of earthing systems
RC48C Variant(s)
| Basic device | Supply voltage/ frequency range US | Power consumption | Art. No. |
|---|---|---|---|
| Residual current/loop monitoring device | AC/DC 60…264 V 50…60 Hz | approx. 5 VA at AC 60 V approx. 8.5 VA at AC 264 V | B94013002 |
Optional Accessories for RC48C
| Type designation | Art.-No. |
|---|---|
| Termination device, P = 5 W | B94013008 |
| Termination device, P = 50 W | B94013009 |
| Termination device, P = 50 W | B94013006 |
| Termination device with integrated resistor, P = 50 W | B94013007 |
| Remote alarm indicator and operator panel | B94071000 |
| Residual current transformer, 70 mm | B911777 |
| Residual current transformer, 105 mm | B911778 |
Downloads for RC48C
| Category | Name | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| CE Declarations of conformity | RC48 | 84.0 KB | 2022/08/12 06:17:2512.08.2022 06:17:25 | ||
| Manuals | RC48C | 863.7 KB | DE | 2022/06/09 10:45:4509.06.2022 10:45:45 | D00318 |
| Manuals | RC48C | 722.4 KB | EN | 2020/02/26 13:52:4626.02.2020 13:52:46 | |
| Manuals | RC48C | 722.4 KB | ES | 2020/02/26 13:52:4626.02.2020 13:52:46 |
