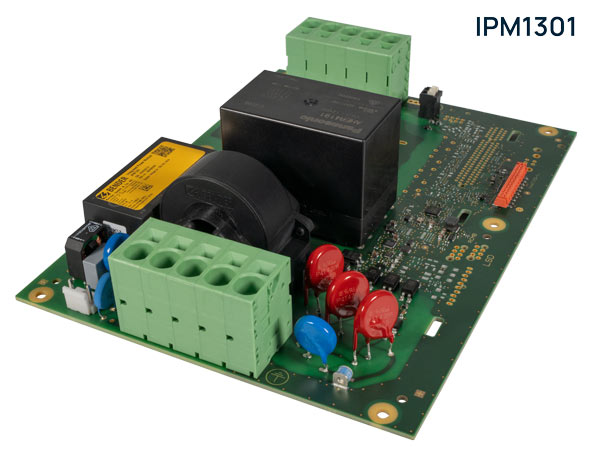

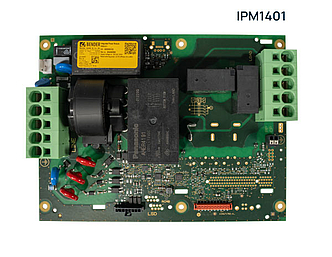

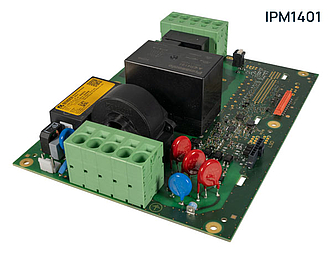

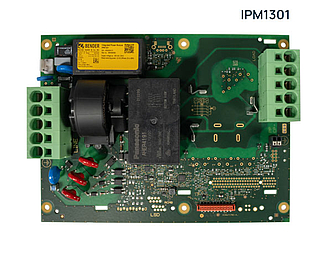

IPM1301 / IPM1401 Power Module

• Fully integrated expansion module for the ICC1314 series charge controllers
• Compact power electronics board with all relevant safety and control functions for setting up AC charging stations
• Standardised dimensions: 150 × 200 mm
• 22 kW power relay (32 A / 400 V) for single-phase and three-phase grid connections
• Phase connection for PV-optimised charging (IPM1401 variant)
• Integrated power supply for the charge controller
• Comprehensive electrical safety functions, e.g. protective shutdowns and fault detection
• Built-in sensors for monitoring temperature, voltage and current
• Easy system integration via ribbon cable connection

The IPM1xx1 is a fully integrated power module for use with the Bender ICC1314 charge controller. It replaces all standard components that are typically installed in conventional AC charging stations. It combines all relevant protection, control and power functions on a single circuit board.

The modules in the IPM1xx1 series are available as circuit boards in a standardized size of 150 × 200 mm. In combination with the ICC1314, they enable the construction of wall boxes and charging stations with a charging capacity of up to 22 kW.

The high level of integration significantly reduces the complexity of a charging station.

This saves space and simplifies production. Further Bender charging products in standard sizes will follow, enabling charging station manufacturers to adapt their products for different applications and charging scenarios without having to change the housing.

The IPM1301 and IPM1401 variants are the first versions in this series and offer a particularly simple and efficient solution for the development and production of AC charging stations.

The module contains an integrated power supply unit for supplying the charge controller; no separate DC power supply is required.

The IPM1xx1 series offers a comprehensive electrical safety concept with, for example, measuring current transformers and protective conductor monitoring, and allows the monitoring of voltage, phase angle and frequency.

An integrated temperature sensor also allows the device temperature to be monitored via the charge controller.

Notes

• IPM1301 and IPM1401 are used in combination with the ICC1314-Connect-Plus charge controller (B94060071).

• The compact version IPM1300 is used with the charge controllers ICC1314-Connect-Plus-G1 (B94060030) and ICC1314-Companion-G1 (B94060031).
