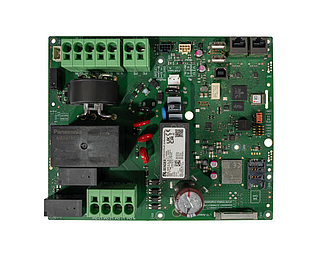

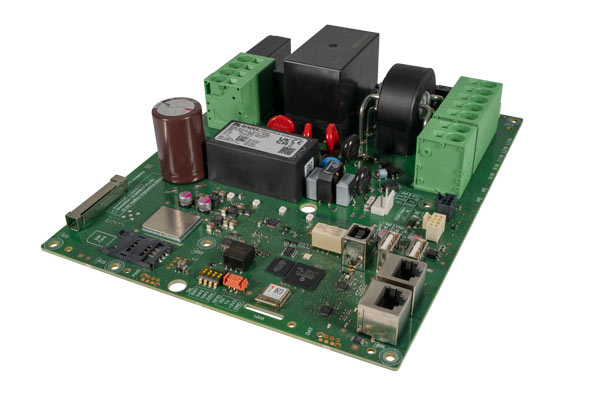

ICC1624 All-In-One Charge Controller

• Combination of charge controller and power module
• Single-board solution for AC charging stations up to 22 kW
• For commercial and semi-public charging scenarios
• Includes power supply and power relay with independent phase connection
• All-in-one concept simplifies integration and service
• Connectivity via LAN (2x), Wi-Fi and LTE/4G
• Dimensions: 220 x 180 mm

The fully integrated charge controller is the perfect complete solution for fully equipped AC wall boxes and charging stations with single or double connections. It is used in commercial and semi-public charging scenarios.

The single-board design simplifies integration, as all necessary components are combined in one device. This reduces development and production costs for charging station manufacturers.

It also saves space in the housing and standardises handling in the event of servicing. In everyday use, repairs by replacement are often easier to carry out than troubleshooting on several separate components.

The ICC1624 all-in-one charging solution reduces with a variety of communication interfaces the integration efforts to a minimum: LTE/4G connectivity and Wi-Fi/WLAN with hotspot or router function are supplemented by two Ethernet ports. This enables easy chaining of charging stations with each other.

Multiple USB and I/O ports provide sufficient interfaces for connecting additional or external components.
