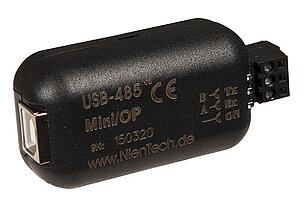

DI-2USB
- RS-485 to USB
The DI-2USB interface converter is designed for connecting PCs and work stations via the USB interface to Bender devices utilising an RS-485 interface. The hardware and software of the computers need not to be changed. A personal computer can be connected to a BMS network via the DI-2USB converter, for example.
- RS-485 to USB
The DI-2USB interface converter is designed for connecting PCs and work stations via the USB interface to Bender devices utilising an RS-485 interface. The hardware and software of the computers need not to be changed. A personal computer can be connected to a BMS network via the DI-2USB converter, for example.
Features
- Plastic enclosure
- Electrical separation between the input and output circuit
- Power supply via USB port
- USB cable and driver CD included in the scope of delivery
Applications
- Conversion of USB interface into RS-485 interface
- Parameterisation of alarm indicator and operator panels (MK2430) via RS-485 interface by means of software
- Parameterisation of Modbus RTU devices via RS-485 interface by means of software
DI-2USB Variant(s)
| Type | Supply voltage US | Art. No. |
|---|---|---|
| DI-2USB | supplied by USB port, no additional power supply required | B95012045 |
Downloads for DI-2USB
| Category | Name | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| CE Declarations of conformity | DI2-USB | 481.7 KB | 2022/08/12 06:17:2612.08.2022 06:17:26 | ||
| Datasheets | DI-2USB | 211.1 KB | DE | 2019/05/14 09:37:4614.05.2019 09:37:46 | D00103 |
| Datasheets | DI-2USB | 212.5 KB | EN | 2019/05/15 10:34:4415.05.2019 10:34:44 | D00103 |
| Datasheets | DI-2USB | 170.4 KB | ES | 2019/05/13 10:31:3713.05.2019 10:31:37 | D00103 |
| Software | DI-2USB Treiber WinXP | 1.1 MB | 2019/05/13 10:32:1213.05.2019 10:32:12 | D00103 | |
| Software | DI-2USB Treiber Win10 | 3.4 MB | 2019/05/14 09:00:4914.05.2019 09:00:49 | D00103 |
