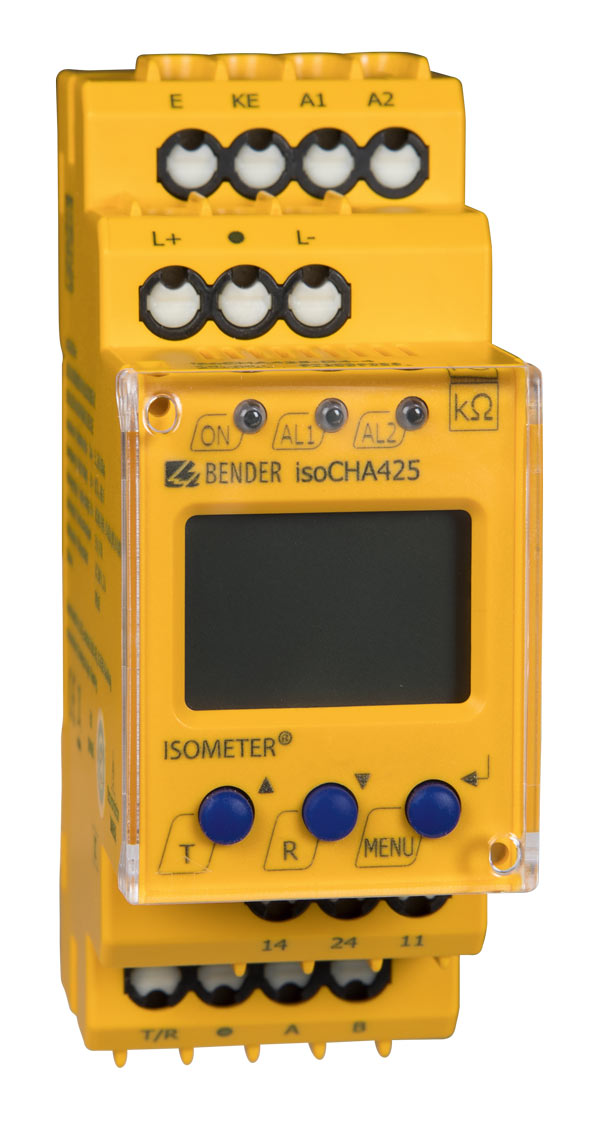

ISOMETER® isoCHA425

ISOMETER® isoCHA425

  • Monitoring the insulation resistance for DC charging stations according to Japanese charging standard CHAdeMO
  • Detection of asymmetrical insulation faults in the DC system voltage range between 50 V und 500 V within 1 s
  • Detection of symmetrical insulation faults within 10 s
  • Measurement of the system voltage (true RMS) with undervoltage and overvoltage detection
  • Measurement of DC system voltages to earth (L+/PE and L-/PE)

The ISOMETER® monitors the insulation resistance of DC charging stations according to the Japanese charging standard CHAdeMO for voltages between DC 50 V and 500 V.

Asymmetric insulation faults are reported with a response time ≤ 1 second. Symmetrical insulation faults within 10 seconds. The maximum permissible system leakage capacitance Ce is 2 μF.

In order to meet the requirements of applicable standards, customised parameter settings must be made on the equipment in order to adapt it to local equipment and operating conditions.

Please heed the limits of the range of application indicated in the technical data. Any use other than that described in this manual is regarded as improper.

  • Features
  • Applications
  • Accessories
  • Ordering information
  • Downloads
  • Monitoring the insulation resistance for DC charging stations according to Japanese charging standard CHAdeMO
  • Detection of asymmetrical insulation faults in the DC system voltage range between 50 V und 500 V within 1 s
  • Detection of symmetrical insulation faults within 10 s
  • Measurement of the system voltage (true RMS) with undervoltage and overvoltage detection
  • Measurement of DC system voltages to earth (L+/PE and L-/PE)
  • Automatic adaptation to the system leakage capacitance up to 2 μF
  • Selectable start-up delay, response delay and delay on release
  • Two separately adjustable response value ranges of 5…250 kΩ (Alarm 1, Alarm 2)
  • Alarm signalling via LEDs (AL1, AL2), a display and alarm relays (K1, K2)
  • Automatic device self test with connection monitoring
  • Selectable N/C or N/O relay operation
  • Measured value indication via multifunctional LCD
  • Fault memory can be activated
  • RS-485 (galvanically isolated) including the following protocols:
    – BMS interface (Bender measuring device interface) for data exchange with other Bender components
    – Modbus RTU
    – IsoData (for continuous data output)
  • Password protection to prevent unauthorised parameter changes
  • DC charging stations for electric vehicles according the Japanese charging standard CHAdeMO



Mandatory accessories for ISOMETER® isoCHA425


DescriptionArt. No.
Mounting clip for screw mounting
(1 piece per device)
B98060008

Variants of ISOMETER® isoCHA425


TypeSupply voltage UsSystem leakage capacitance CeArt. No.
isoCHA425-D4-4AC 100…240 V, 47…63 Hz / DC 24…240 V≤ 2 μFB7103695
